Name: Heavy Duty Drawer Slides Full Extension Locking Runners with Lock 16 18 20 22 24 26 28 30 32 34 36 38 40 Inch Side Mount Ball Bearing Rails 500 Lb (Load:250 lb (with Lock) -W:53mm, 22 inch)
SKU: 1219400

Heavy Duty Drawer Slides Full Extension Locking Runners with Lock 16 18 20 22 24 26 28 30 32 34 36 38 40 Inch Side Mount Ball Bearing Rails 500 Lb (Load:250 lb (with Lock) -W:53mm, 22 inch)

$ 42.00

$ 60.00

Save: $

Size:

12 Inch
14 Inch
16 Inch
18 Inch
20 Inch
22 Inch
24 Inch
26 inch
28 inch
30 Inch
32 Inch
34 inch
36 Inch
38 inch
40 inch
44 inch
48 Inch
52 inch
56 inch
60 Inch

Model:

Load:250 lb (With lock) -W:53mm
Load:500 lb (No lock) -W:76mm
Load:500 lb (With lock) -W:76mm
Load:250 lb (No lock) -W:53mm

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

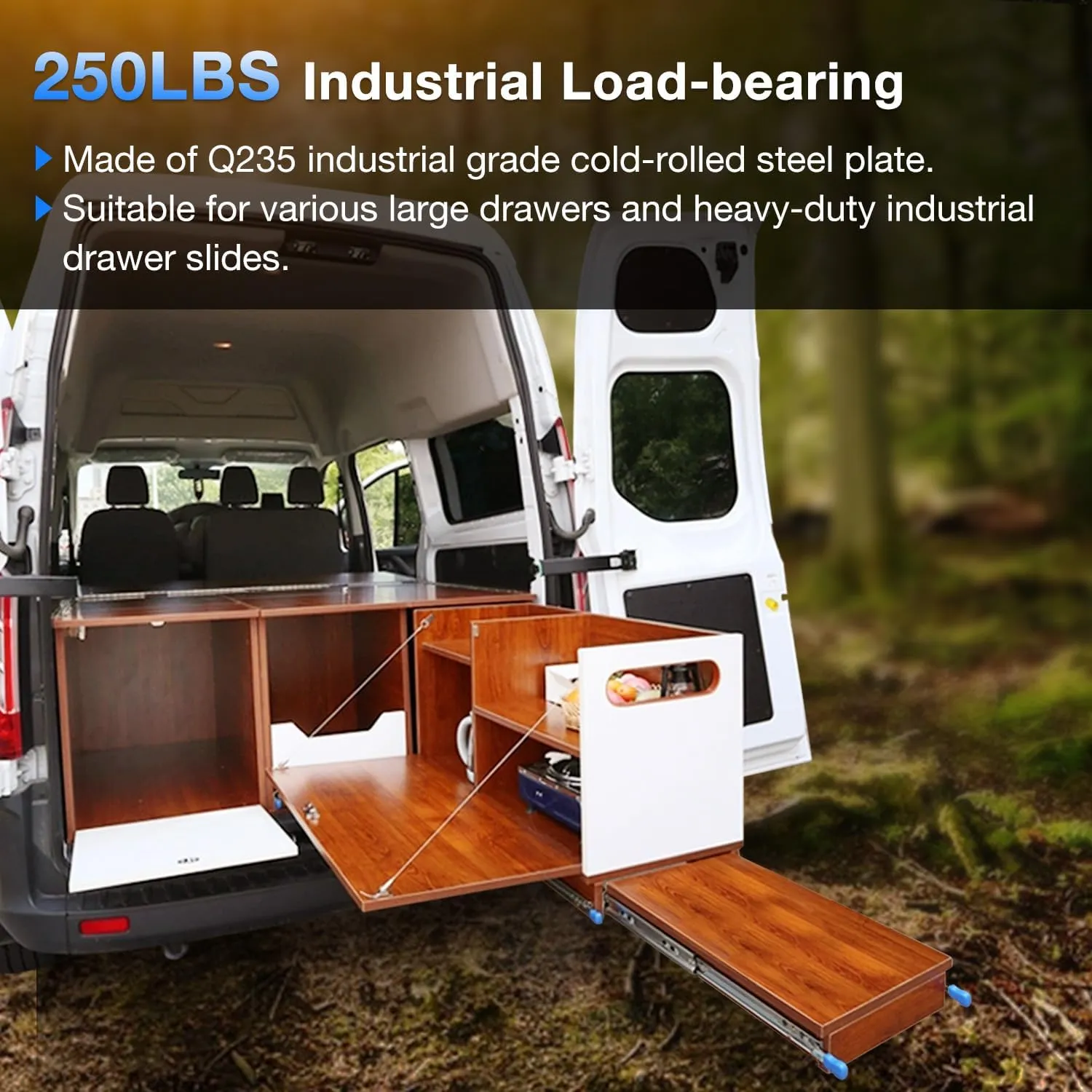

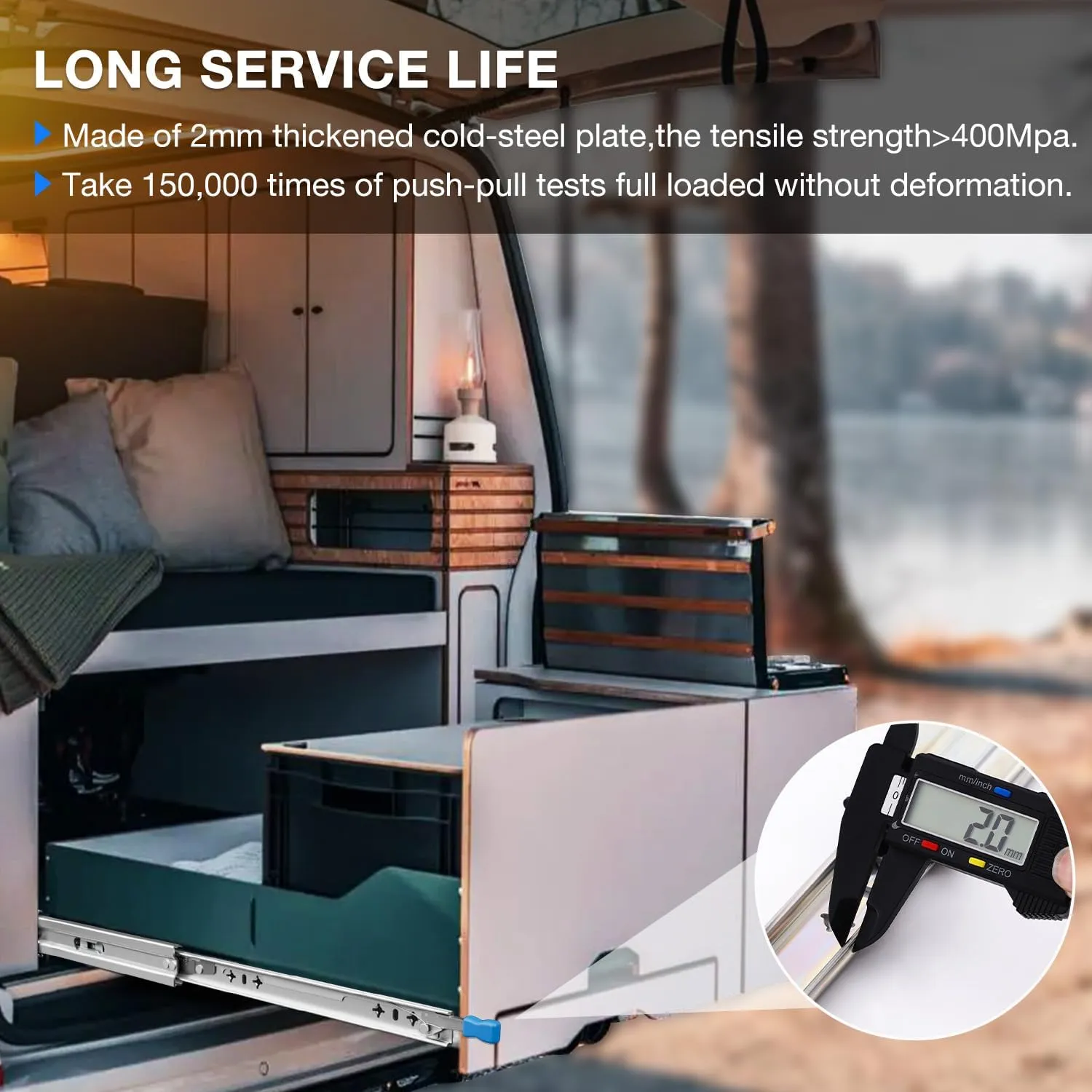

【Heavy Load capacity up to 500 lb】 The drawer slides is made of high-density high-strength Q235 industrial grade cold rolled steel and industrial solid steel ball, which take 150,000 times push-pull tests without damage. The maximum load weight is 500 lb,which vary with the length of slides. REGUDA is committed to produce sturdy and durable drawer slides , the service life of the slide rail could be 30 years at least.

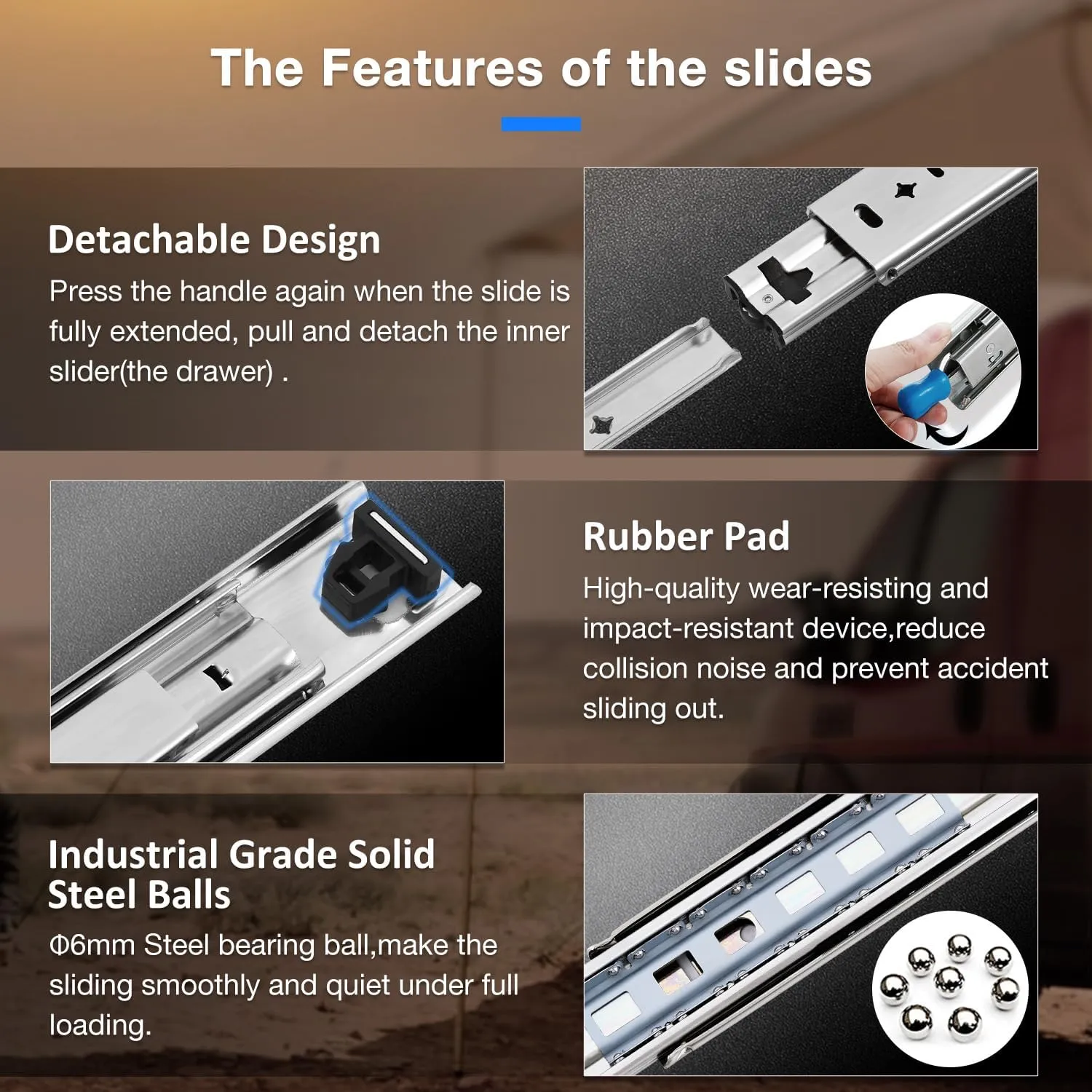

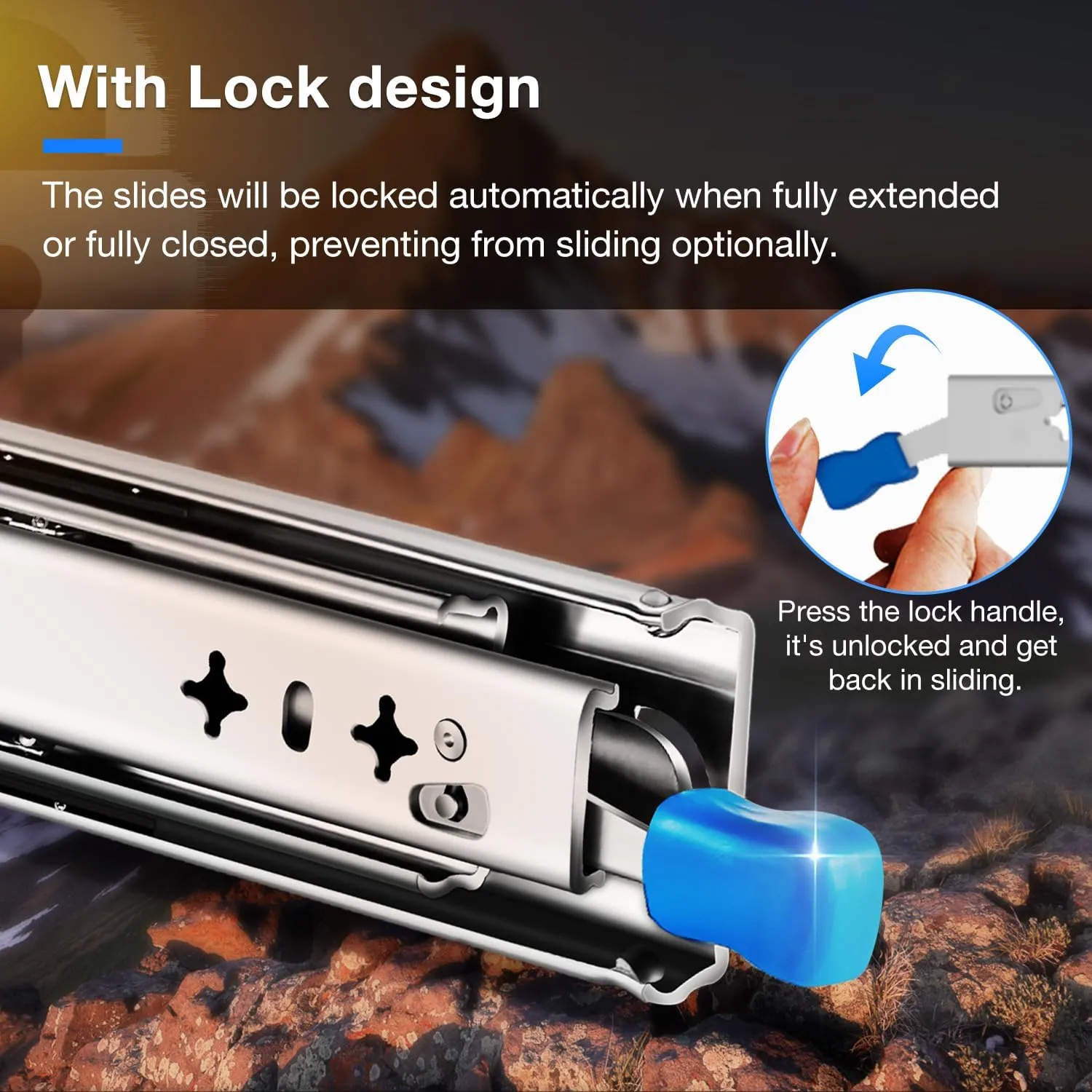

【With hold-still lock & Detachable】 There is a blue handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle gently,it's unlocked and get back in free sliding; By press-and-hold the lock handle,and pull outward in the meantime ,the 3rdtrack(the narrowest section) can be separated ,the drawer can be installed and detached.

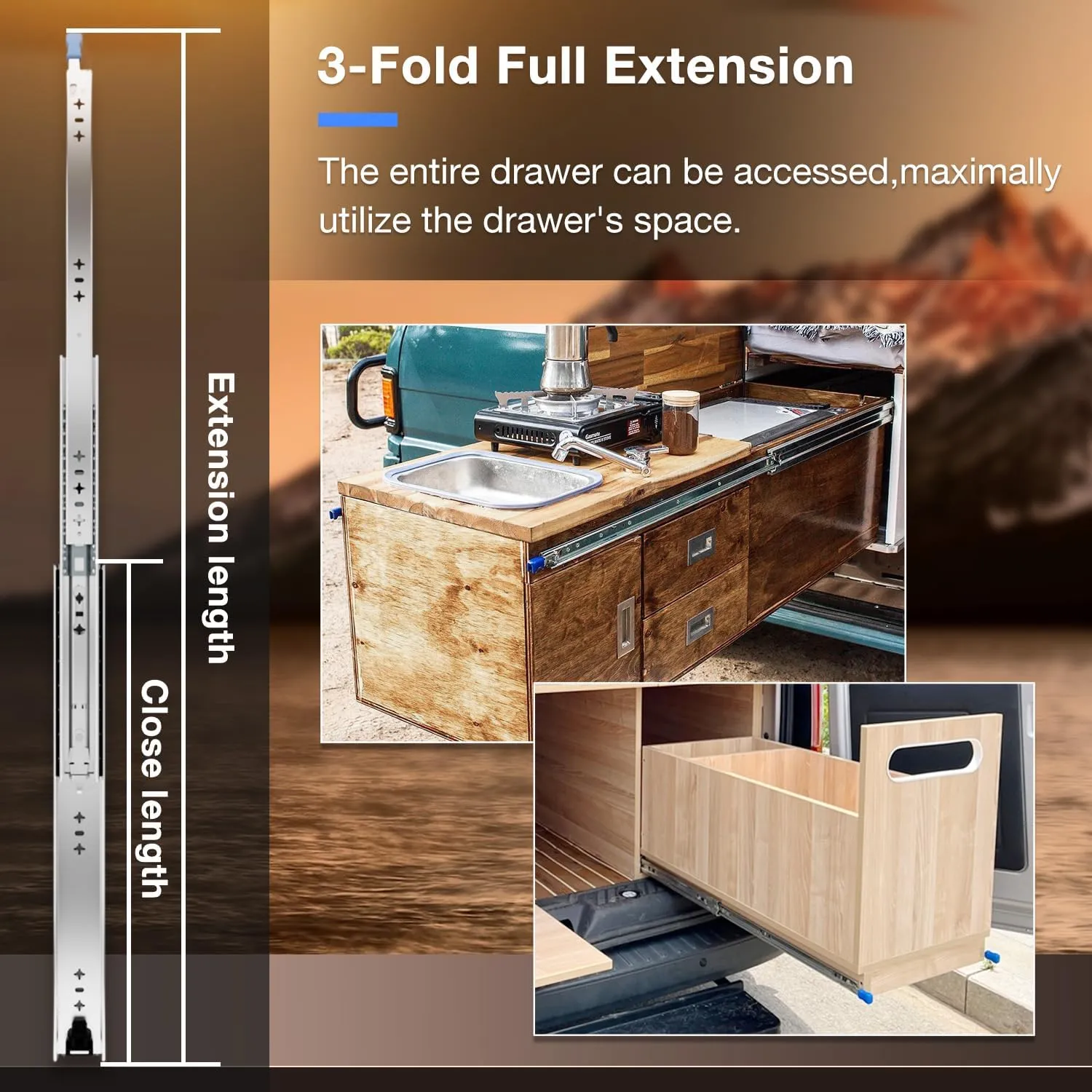

【Full extension; Smooth work 】 “The 3-fold full extension”means the drawer can be pulled out completely,so that the entire drawer to be accessed easily; “TWO row of high-quality solid steel balls “inside ,he drawer slides can work smoothly even though full loaded. Both of them make the act “open the drawer to get something “ become comfortable.

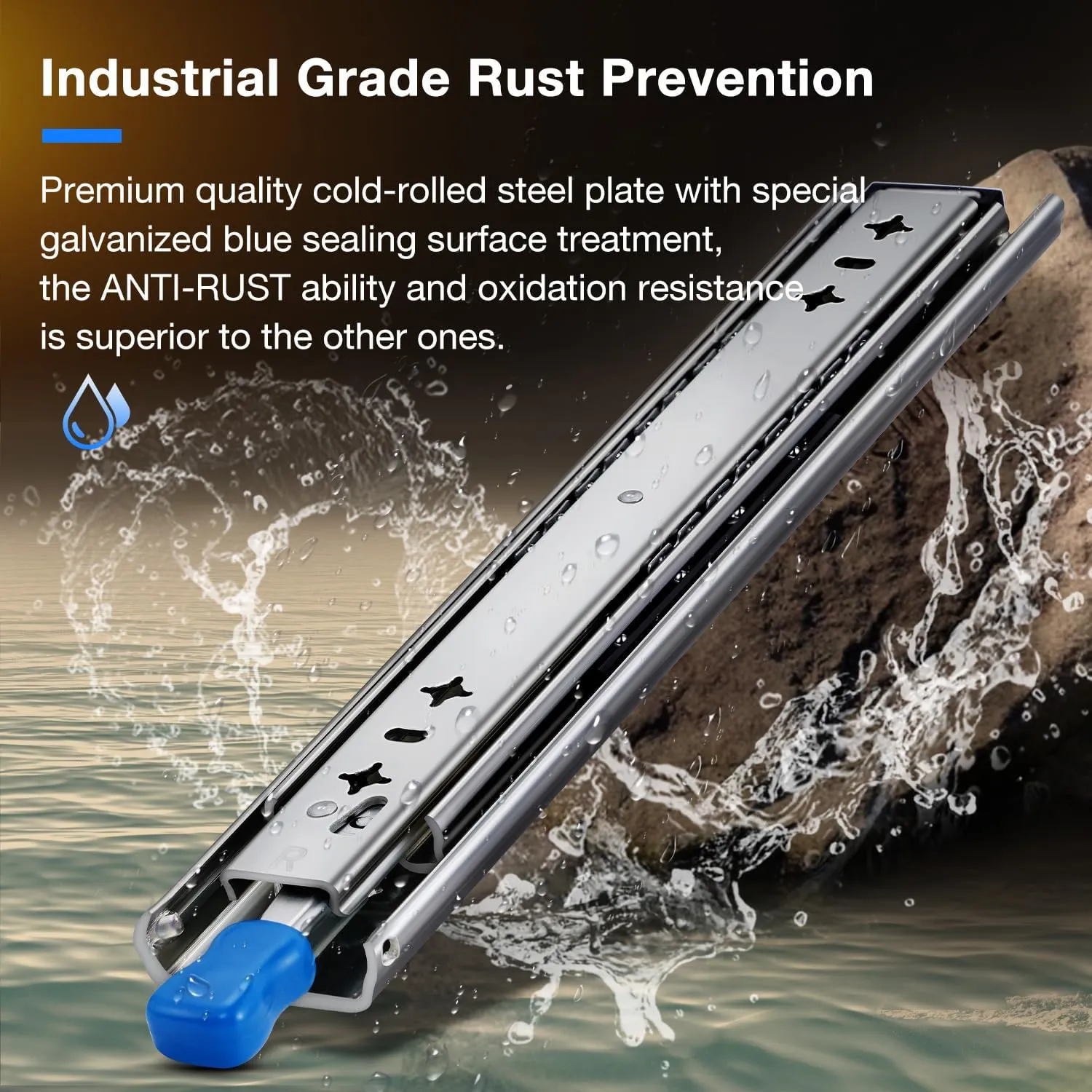

【Corrosion resistant and Anti-rust】 The rust resistance of our slides is superior to the others because of the special galvanized blue sealing surface treatment.

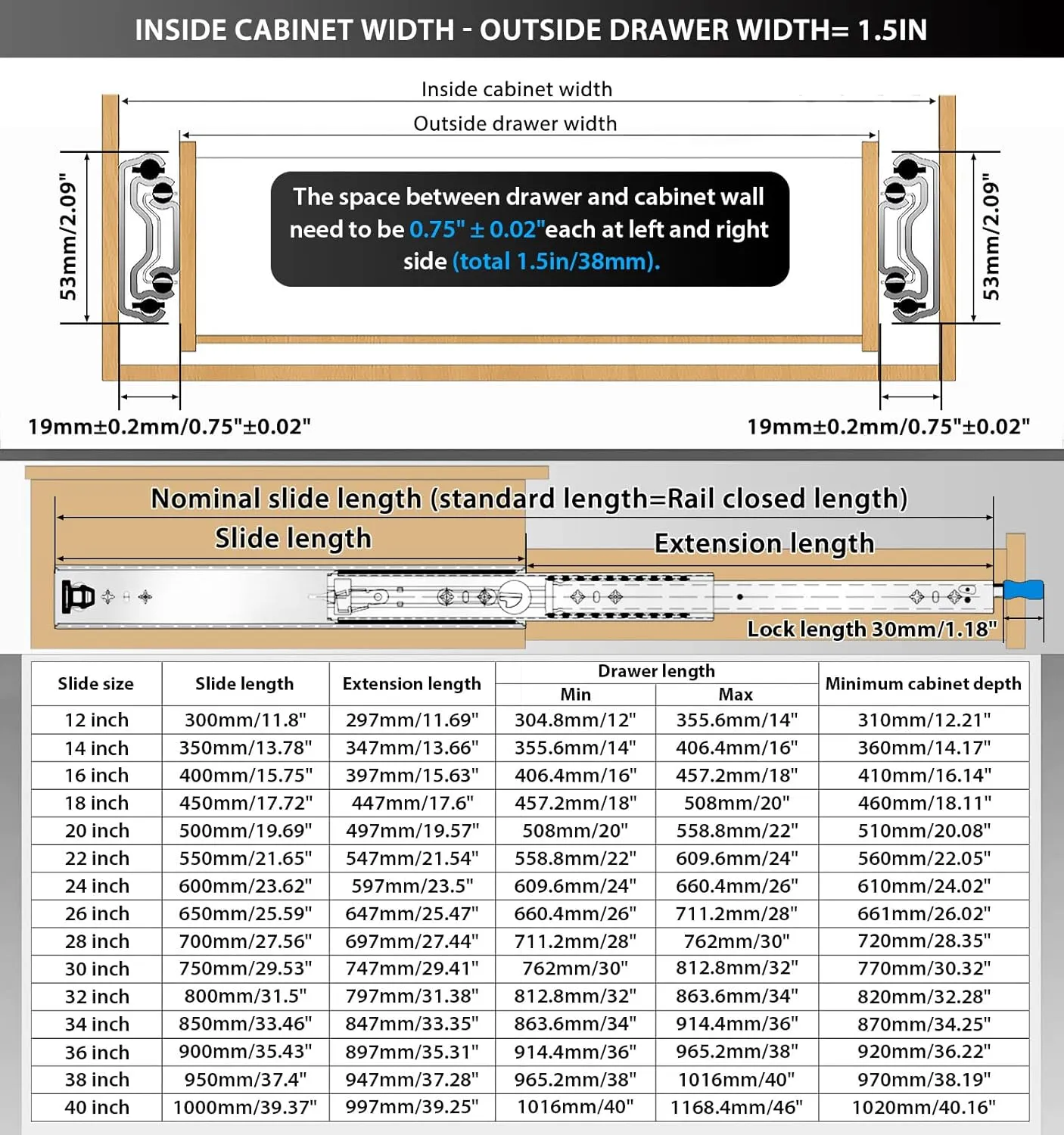

【Installation notes】 Choose the size of the rails according to the depth of the drawer. The length of drawer≥length of slides,the tolerance 0.7in/20mm-1in/30mm is okay. The space between drawer and cabinet wall need to be 19mm/0.75in each side(total 38mm/1.5in). Attention: one set includes a pair of slides without any screws(The type M5 screws can be applicable,you can buy different M5 screws according your specific application scenarios). contact us without hesitate if any installing problem.
