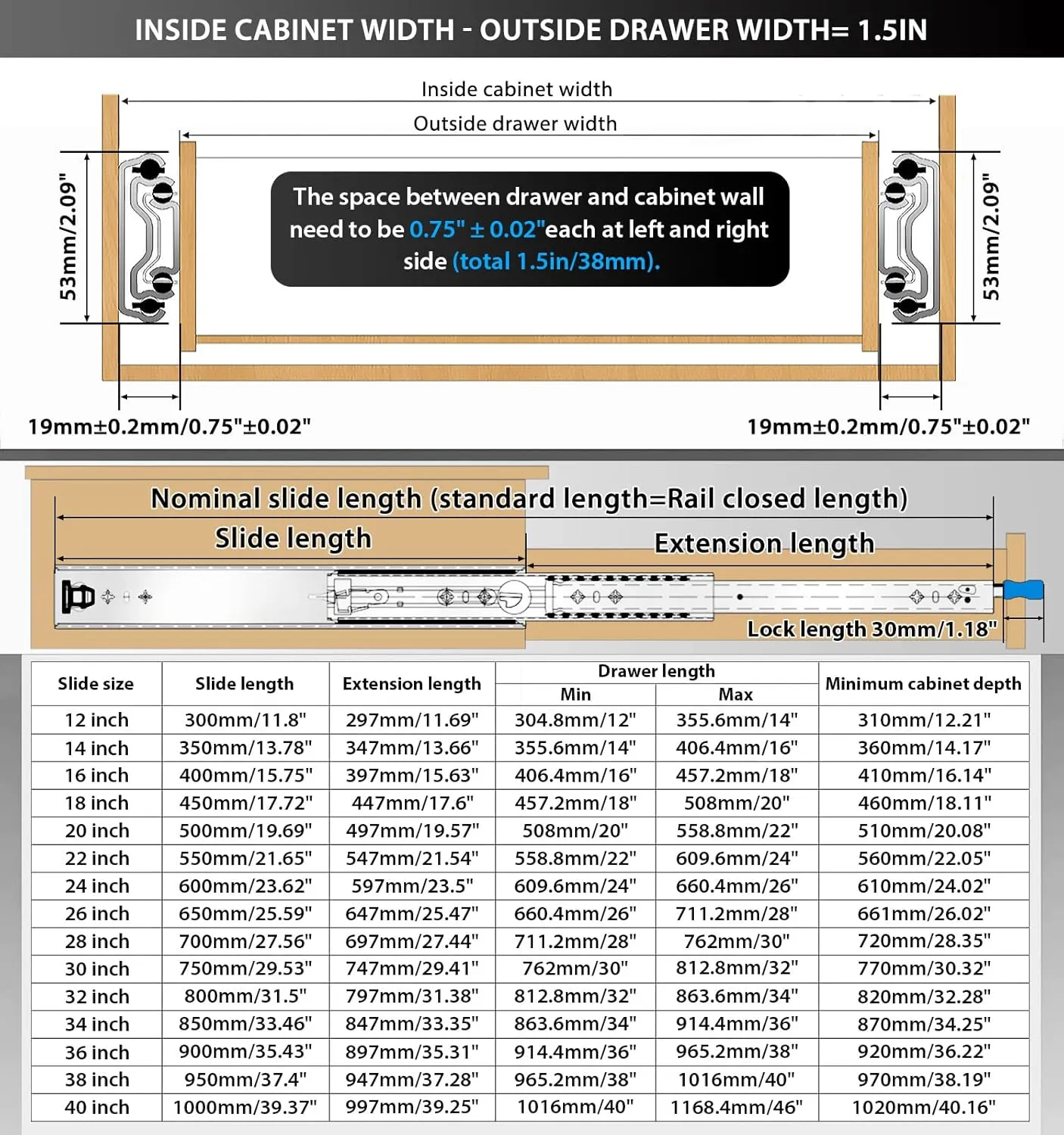

- 【Installation note】Suitable for drawers with an internal depth of ≥ 12"-14".The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 Note:For installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level. without mounting screws included,you can purchase different M5 screws according to your specific installation scene.

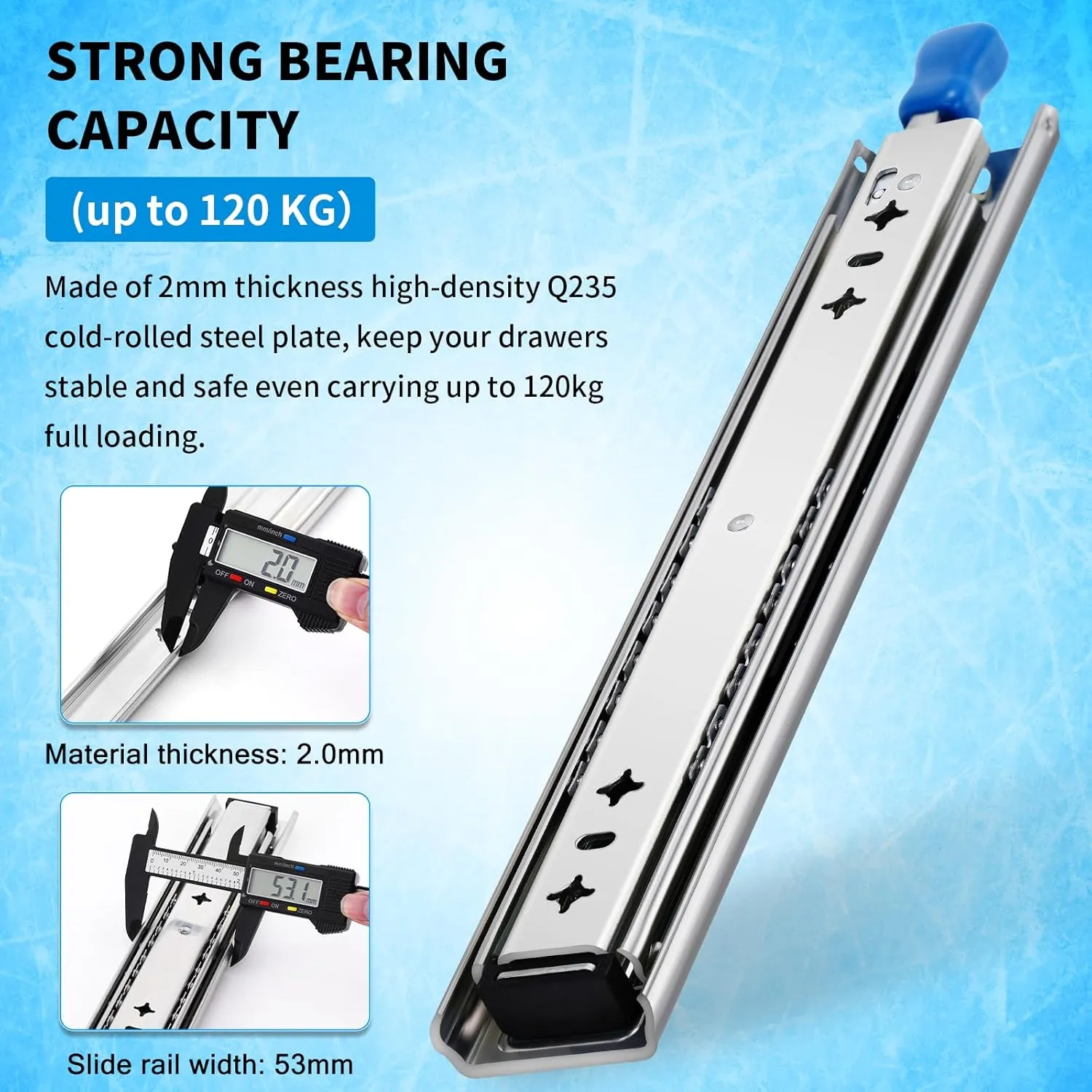

- 【MAXIMUM LOAD CAPACITY:250 lb】The slides is made of 2mm thickness high-density Q235 cold-rolled steel plate( tensile strength>400MPa),it will keep your drawers stable and safe even carrying up to 250 lb heavy weight items,which take opening and closing test 150,000 times under full loaded without damage. Note:The shorter the slide,the heavier the weight load.

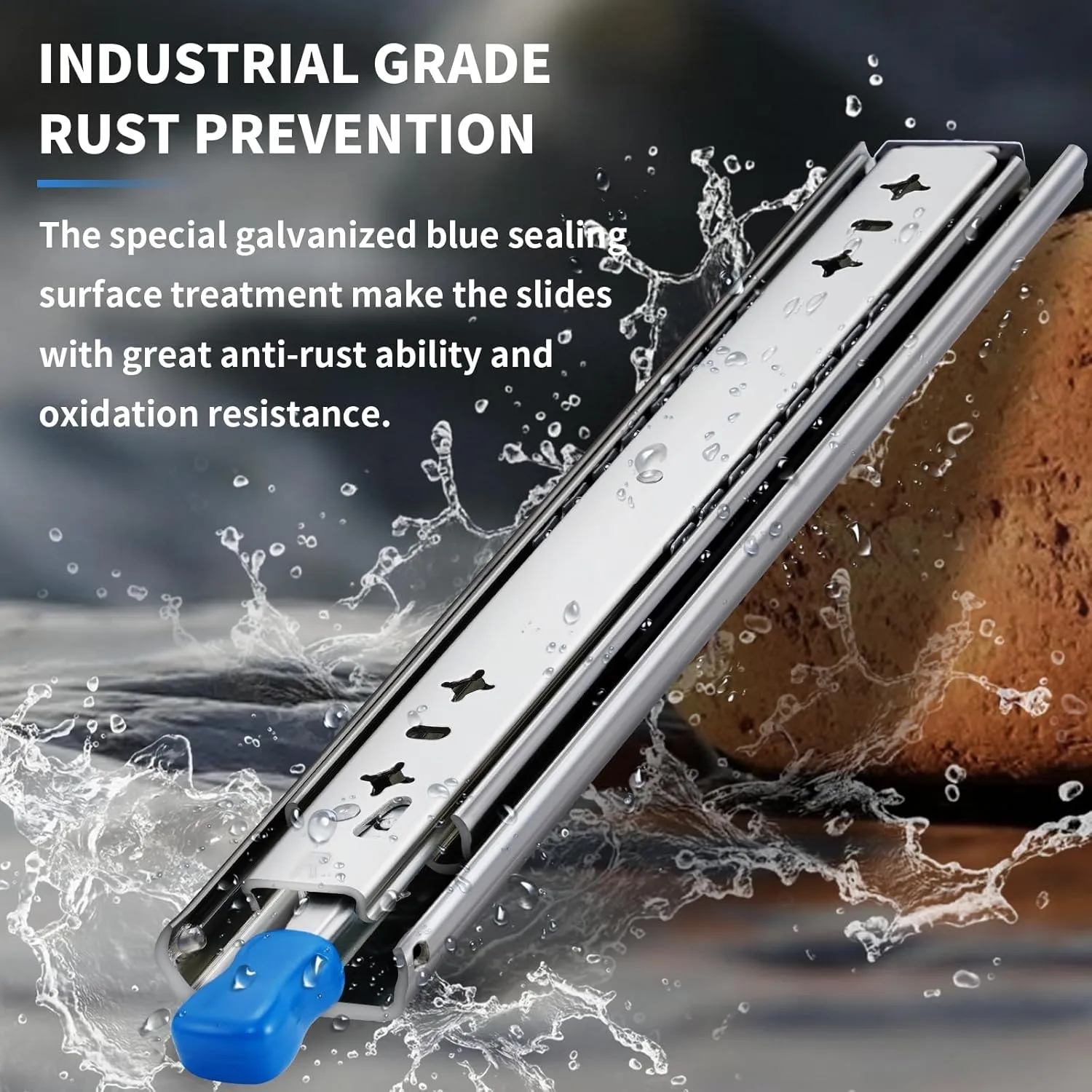

- 【30 years service life】The drawer slides' surface are treated with electroplated blue zinc, therefor it’s with oxidation resistance and anti-corrosion ability, the service life of the slide rail could be 30 years at least. Our motto is “Use quality slides,live quality life” ,besides the quality, YENUO also focused on after-sales service,any quality or installing problem please feel free to contact us.

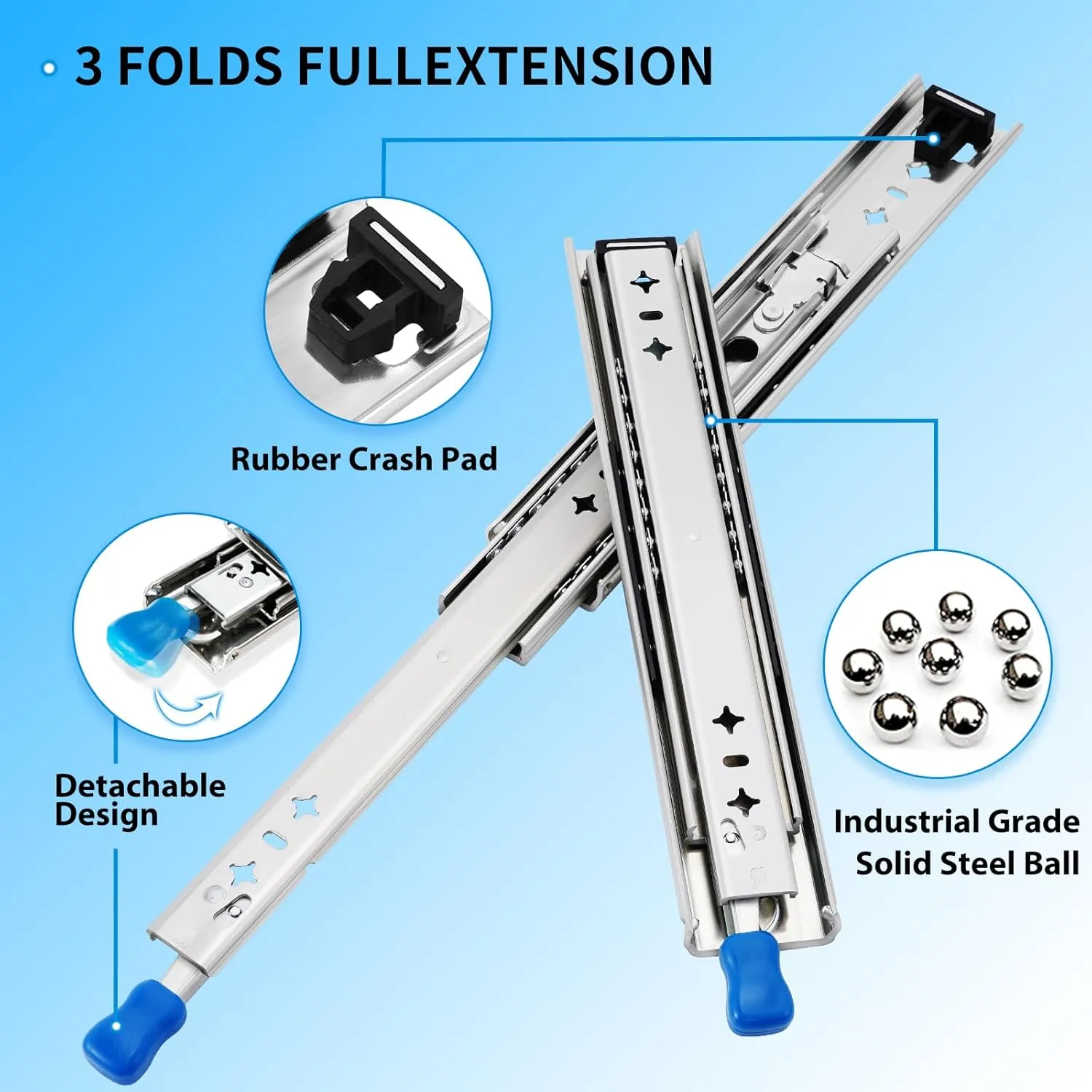

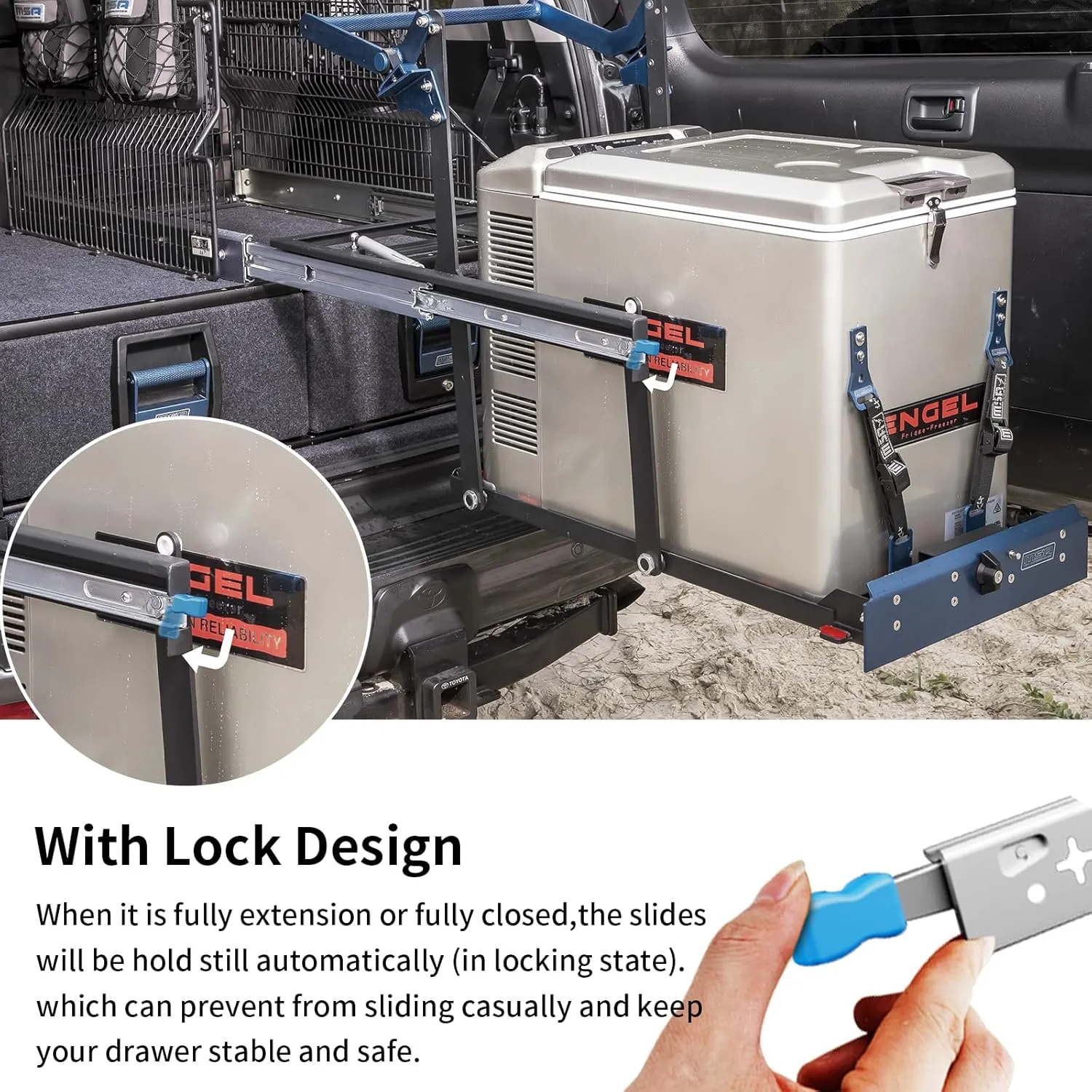

- 【With hold-still lock & Detachable】 There is a blue handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle gently,it's unlocked and get back in free sliding; Detachable: By press-and-hold the lock handle,and pull outward in the meantime ,the 3rd track(the narrowest section) can be separated .

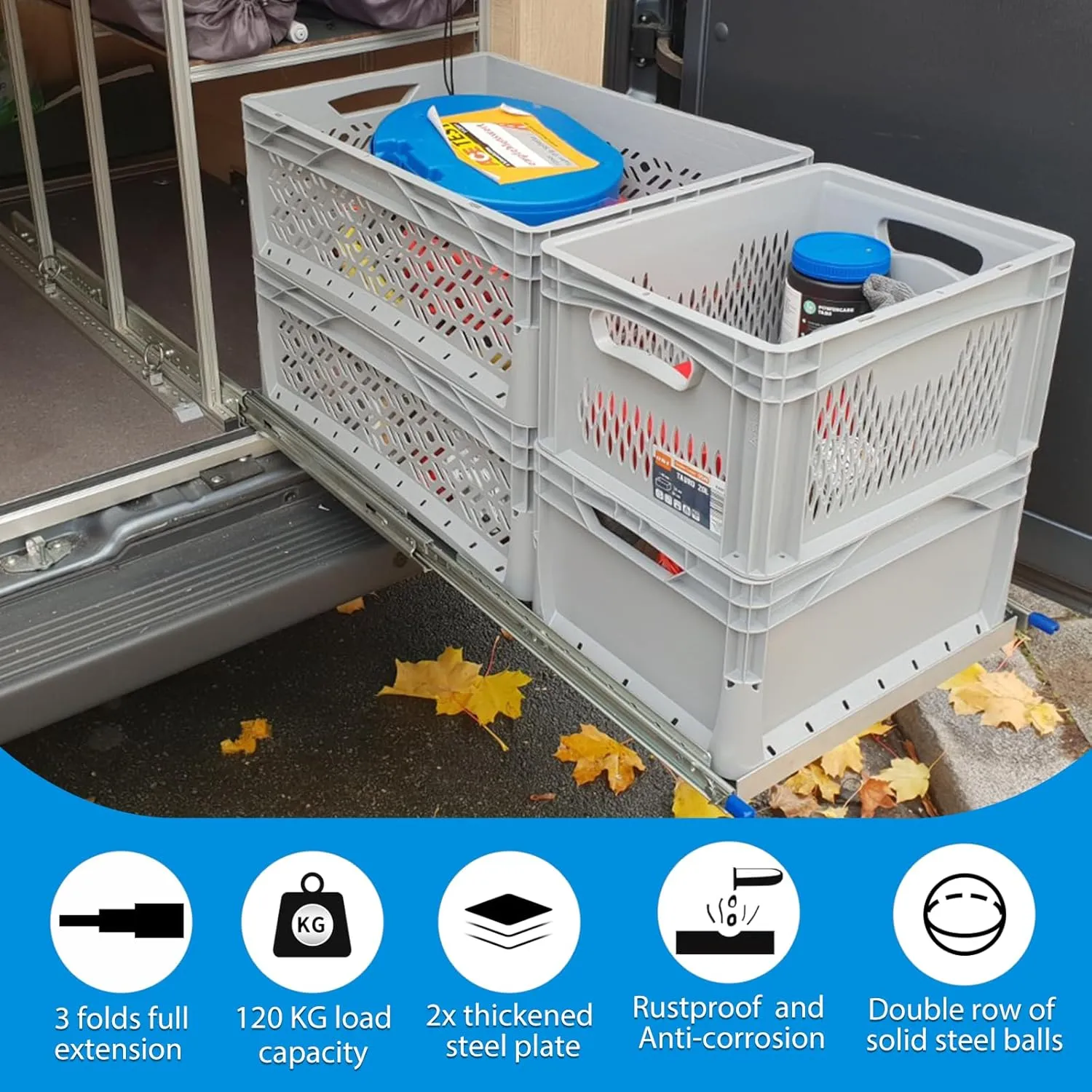

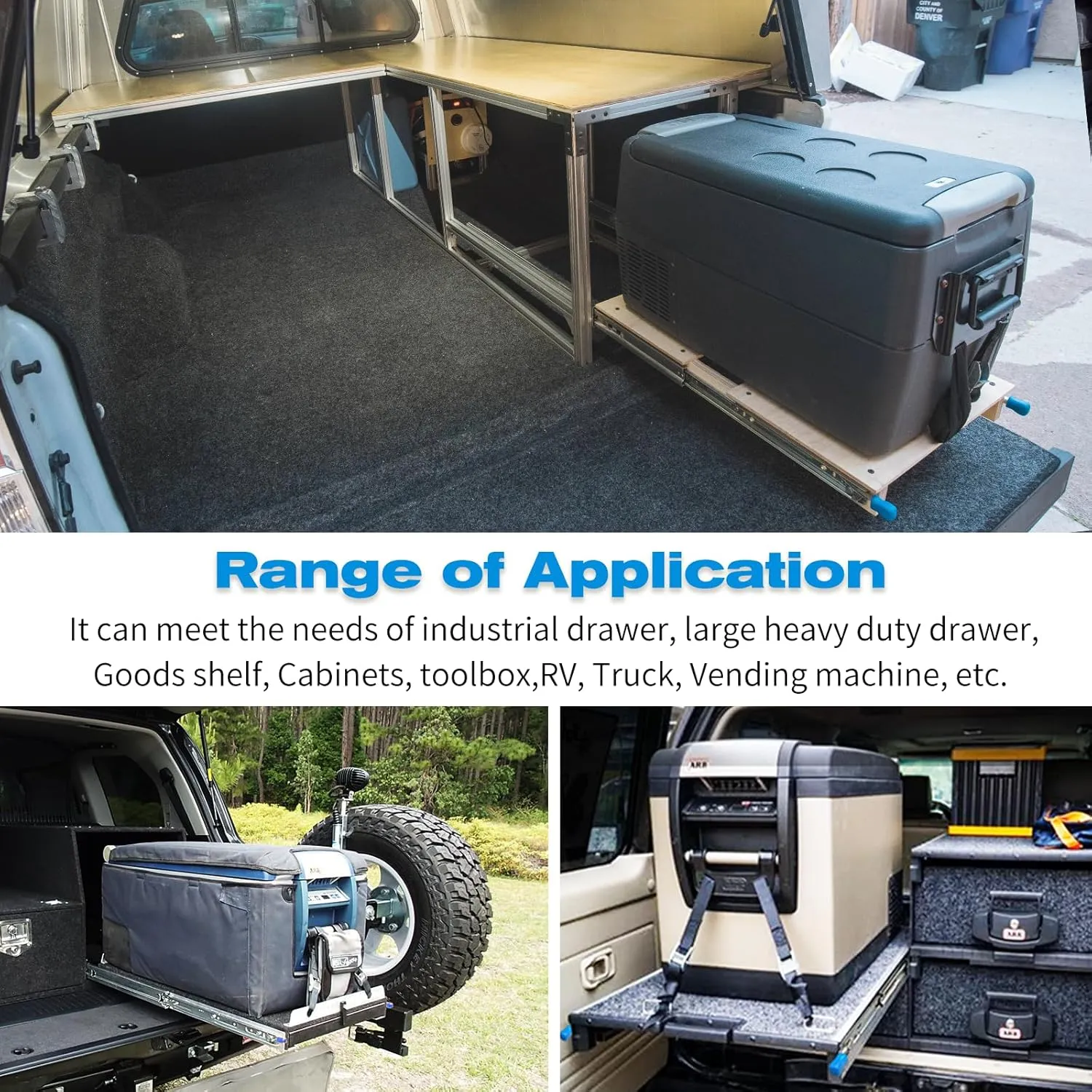

- 【3-fold full extension】Slides Width: 2.08" (53mm)--length:12" (300mm)--Fully extended length:24"(600mm)-Maximum load-bearing: 250 lb/113 kg. The “3-fold full extension”enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer’s storage to be accessed easily; Application range: Goods shelf, Industrial drawers,Mechanical Cabinets, RV, Truck, Vending machine,safety drawers, exhibition drawers, heavy truck drawers,etc.
